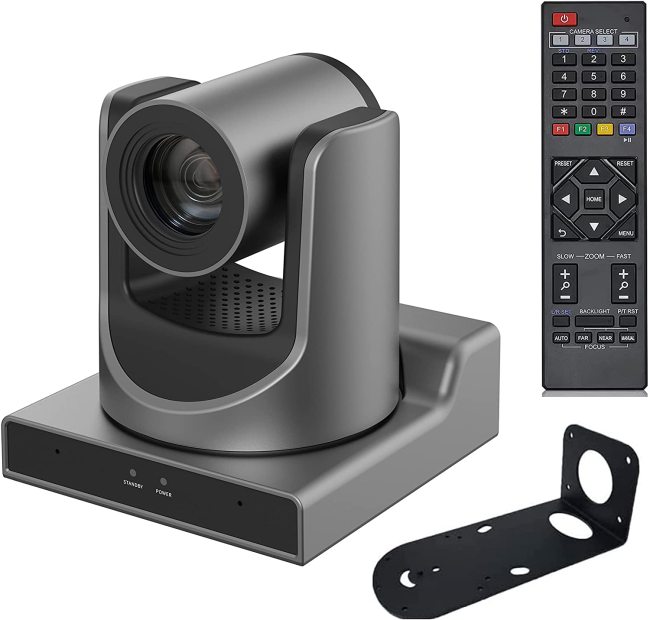

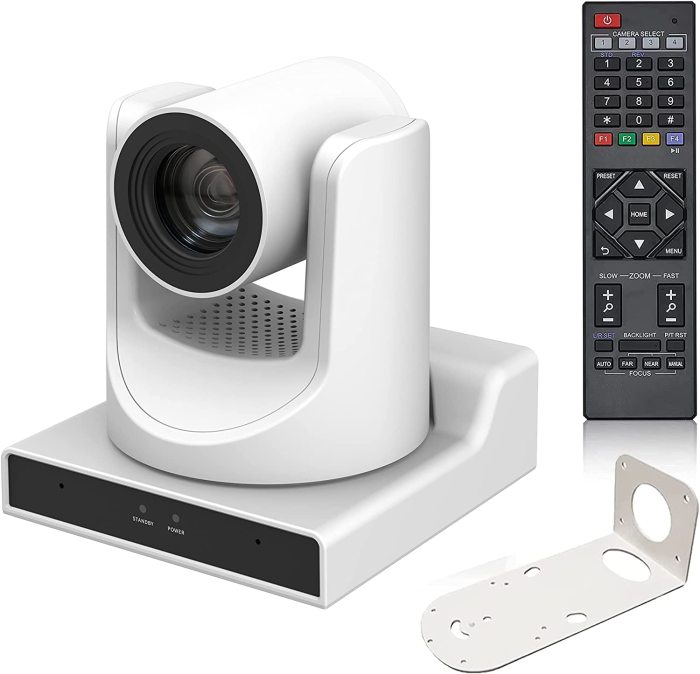

ADKIDO 20X Optics Zoom AI Tracking NDI PTZ Camera, A20TB-N

ADKIDO 20X Optics Zoom AI Tracking NDI PTZ Camera, A20TB-N

US$ 699.00
Color
Customized Requirements

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
ADKIDO 20X Optics Zoom AI Tracking NDI PTZ Camera, A20TB-N
color:red,size:xxl
Subtotal: US$ 0
View My Cart

  • ADKIDO AI Tracking NDI PTZ Camera, 20X Optics Zoom,HDMI/SDI/USB3.0/IP Streaming Outputs for Meeting, Church, Events, Teaching

    About this item

    • AI Tracking--based on target's clothes, body shape, hair style and face identification, we can know the exact position of the target and achieved the goal of automaticly identifying and tracking human shape, automaticly box capturing and the function of conference intelligent privacy blur
    • 1080P60 FULL NDI-- Spported 1080P60 FULL NDI,achieved ultra high resolution and lossless image quality by network transmission.
    • Technique of full interface and low latency -- All video output interface achieved low latency metrics. It supported transfering by 4 interfaces at the same time and 1080P60.
    • Advanced Auto-focusing Technology-- Use advanced focusing algorithm to realize high-speed, accurate and stable auto focusing. has double-mic for sound pick up, and it can be connected with external microphone, bluetooth speaker, etc, to satisty what you need in the multi-situation.

    Features

    New Generation of ISP Image Processing Algorithm
    Provide better functions of white balance and automatic exposure to drastically enhance the performance of image output and the imaging quality. This technology widely used in recording of education, remote education, video conference, live streaming, broadcast, and so on.

    Updated Version of AI
    Through updated version of AI and pedestrian re-identification technique, based on target's clothes, body shape, hair style and face identification, we can know the exact position of the target and achieved the goal of automaticly identifying and tracking human shape, automaticly box capturing and the function of conference intelligent privacy blur*.

    1080P60 FULL NDI
    Spported 1080P60 FULL NDI,achieved ultra high resolution and lossless image quality by network transmission.

    Technique of full interface and low latency
    All video output interface achieved low latency metrics. It supported transfering by 4 interfaces at the same time and 1080P60.

    Advanced Auto-focusing Technology
    Use advanced focusing algorithm to realize high-speed, accurate and stable auto focusing.

    Exclusive Audio Processing Algorithm
    With audio processing algorithm, it can eliminate reverberation and reduce noise. At the same time, it supported EQ adjusting and sound effect optimizing. It has double-mic for sound pick up, and it can be connected with external microphone, bluetooth speaker, etc, to satisty what you need in the multi-situation.

    Multi-interface for video
    Support SDI, HDMI, USB 3.0 and network audio-visual output.

    Easy setup:
    Use the remote control to turn the tracking function on or off in the OSD menu of the camera, or use the shortcut keys F1, F2 and F3 to turn the tracking on and F4 to turn it off.


    POE enabled:
    PoE support, FULL NDI, NDI|HX, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, SRT, GB/T28281, etc. Support. Easily Live Streaming to Facebook Youtube and other Video Production.

    Technical Data

    Camera
    Video System 1080P60,1080P59.94,1080P50,1080I60,1080I59.94,1080I50,1080P30,1080P29.97,1080P25,720P60,720P59.94,720P50
    Sensor 1/2.8-inch high-quality UHD CMOS sensor with a maximum of 2.07 million pixels
    Scanning Mode Progressive scanning
    Lens 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 【equivalent focal length 35mm: 34mm-674mm】
    Minimal Illumination 0.5Lux @ (F1.8, AGC ON)
    Electronic Shutter 1/30s ~ 1/10000s
    White Balance automatic, manual, one touch, Specifying color temperature, indoor, outdoor
    Digital Noise Reduction 2D, 3D digital noise reduction
    Backlight Compensation Supported
    Video S/N ≥55dB
    Horizontal Angle of View  60.7° ~ 3.36°
    Vertical Angle of View  34.1° ~ 1.89°
    Horizontal Rotation Range  ±170°
    Vertical Rotation Range   -30° ~ +90°
    Pan Speed Range  1.7° ~ 100°/s
    Tilt Speed Range  1.7° ~ 69.9°/s
    H & V Flip Supported
    Image Freeze Supported
    Number of Preset  255
    Preset Accuracy  0.1°

    Audio
    Digital audio pickup Built-in dual microphone array, 100Hz to 16KHz frequency response
    Analog audio input Supported 3.5mm Line-In
    Digital audio output Supported HDMI, USB, LAN, SDI, etc, adio output
    Analog audio output Supported 3.5mm Line-Out


    USB Featured
    Operate System Windows® 7(only for 1080p and below), Windows 8.1, Windows 10 and up
    macOS™ 10.10 and up
    Google™ Chromebook™ Version 29.0.1547.70 and up
    Linux (only forUVC)
    Hardware Requirement 2.4 GHz Intel® Core 2 Duo processor and up
    2 GB internal storage and up
    USB 2.0 interface
    Color System / Compression YUY2/MJPEG/H.264
    Video Format Supported video format of multi frame rate and resolution ratio, up to 1080P60 YUY2 output.
    USB Video Communication Protocol UVC 1.1 or UVC1.5
    Audio on USB 32K sampling frequency, supported UAC2.0
    UVC PTZ Supported


    IP Camera
    Video Compression H.264
    Video Stream First streaming, second streaming
    Main Stream Resolution 1920x1080,1280x720,1024x576,960x540,640x480,640x360
    Sub Stream Resolution 1280x720,1024x576,720x576, 720x480,720x408,640x360,480x270,320x240,320x180
    Video Bit Rate 32Kbps ~ 102400Kbps
    Bit Rate Type Variable bit rate,Fixed bit rate
    frame rate 1fps ~ 60fps
    Audio Compression AAC
    Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
    Support protocols FULL NDI, NDI|HX, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, SRT, GB/T28281, etc.

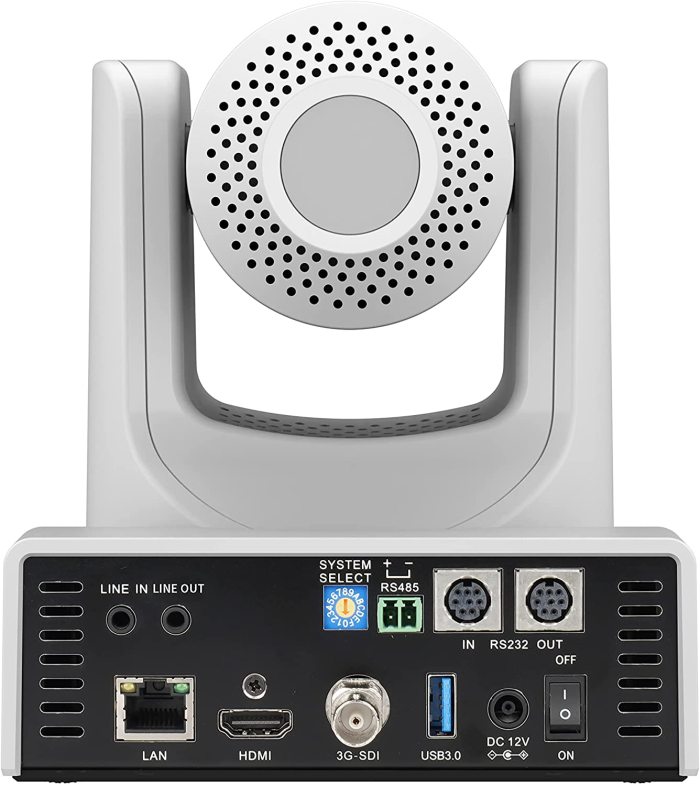

    Input/Output Interface
    USB 1-ch, USB 3.0: Type-A
    HD Output 1x, HDMI: V1.3
    1x, 3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424M standard
    Network Interface 1 x ,RJ45:10M/100M/1000M Adaptive Ethernet, supported PoE
    Audio interface 1x, Line In, 3.5mm Audio Interface
    1x, Line Out, 3.5mm Audio Interface
    Communication Interface 1x, RS232 In: 8pin Min DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P
    1x, RS232 Out: 8pin Min DIN, Max Distance: 30m, VISCA network use only
    1x, RS485: 2Core phoenix mouth, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P
    Power Jack JEITA Type(DC IN 12V)


    Generic Specification
    Input Voltage DC 12V,PoE(802.3af)
    Incoming Current 1000mA
    Operating Temperature 0°C ~ 40°C
    Storage Temperature -40°C ~ 60°C
    Power Consumption 12W
    Size 146mm x 169mm x 168mm
    Net Weight About 1.5Kg
    Mean free error time 30000h
