Used Camera - 85% New - SMTAV NDI Camera, POE support, BV20-N
-
- Product Name: Used Camera - 85% New - SMTAV NDI Camera, POE support, BV20-N
- Item NO.: 6677182906526
- Weight: 0 kg = 0.0000 lb = 0.0000 oz
- Category: PTZ CAMERAS > NDI CAMERAS > 20X
- Tag: NDI , Cameras , POE
- Brand: SMTAV
- Creation Time: 2023-05-11

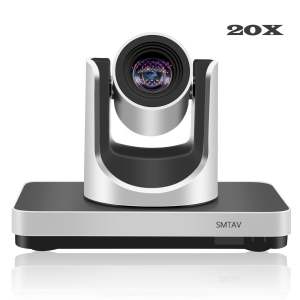

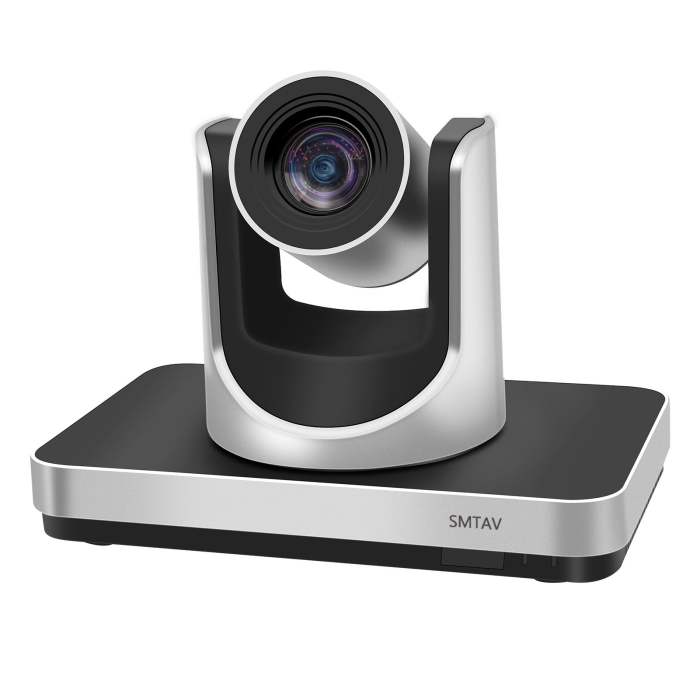

SMTAV NDI Camera, 20x Optical + 16X Digital Zoom,high-Speed PTZ,3G-SDI+HDMI+IP Streaming Outputs, Support POE, Video Conference Camera.
ASIN: B094HRYRKX
Main Features
●20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces

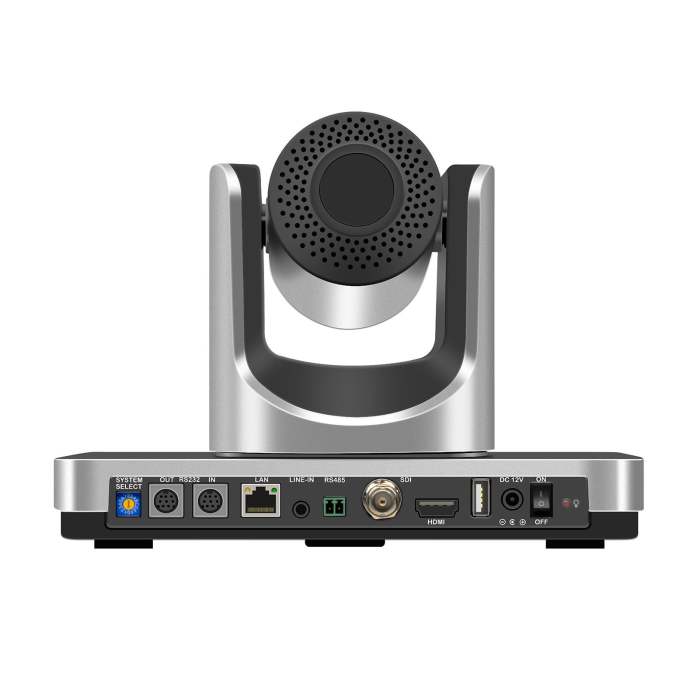

Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.
●Remote Control
Using R232 and RS485 interface, all the parameters of the camera can be controled remotely.Camera Video System HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240
SD: 480i, 576iSensor 1/2.7'', CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 20x, f4.42mm~88.5mm, F1.8 ~ F2.8 Digital Zoom 16x Minimal Illumination 0.5 Lux @ (F1.8, AGC ON) Shutter 1/30s ~ 1/10000s White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual Backlight Compensation Support Digital Noise Reduction 2D&3D Digital Noise Reduction Video S/N ≥55dB Horizontal Angle of View 60.7° ~ 2.28° Vertical Angle of View 34.1° ~ 1.28° Horizontal Rotation Range ±170° Vertical Rotation Range -30° ~ +90° Pan Speed Range 1.7° ~ 100°/s Tilt Speed Range 1.7° ~ 69.9°/s H & V Flip Support Image Freeze Support PoE Support (802.3af) Local Storage Support Number of Preset 255 Preset Accuracy 0.1° IPC Features Video Compression H.265 / H.264 / MJEPG Video Stream Main Stream, Sub Stream Main Stream Resolution 1920x1080, 1280x720, 1024x576 Sub Stream Resolution 720x576, 720x480, 320x240 Video Bit Rate 128Kbps ~ 8192Kbps Bit Rate Type Variable Rate, Fixed Rate Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps Audio Compression AAC Audio Bit Rate 96Kbps, 128Kbps, 256Kbps Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. Input/Output Interface HD Output 1xHDMI: Version 1.3 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard SD Output 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω Network Interface 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply Audio Interface 1-ch: 3.5mm Audio Interface, Line In USB 1xUSB2.0: Type A female jack Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P Power Jack JEITA type (DC IN 12V) Generic Specification Input Voltage DC 12V Current Consumption 1.0A (Max) Operating Temperature -10°C ~ 40°C (14°F ~ 104°F) Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F) Power Consumption 12W (Max) Size 169mm x 142mm x 164mm Net Weight 1.35Kg (3.0lb)
